Get the job done right with our state-of-the-art Rubber belt filter! Our advanced filtration system is designed to quickly and effectively remove unwanted particles, giving you the cleanest product each and every time. Our filters are extremely durable and require minimal maintenance, so you can rest assured that your filter will serve you for years to come. Get your Rubber belt filter today, and experience the power of a premium filtration system!
| الكمية: | |
|---|---|
مرشح حزام DU
Toncin
Product Application:
This DU rubber belt vacuum filter has been widely used for solid-liquid separation in metallurgy, mining, chemical, paper making, food, environmental protection, power plant—FGD(Flue Gas Desulfurization).
Product Description

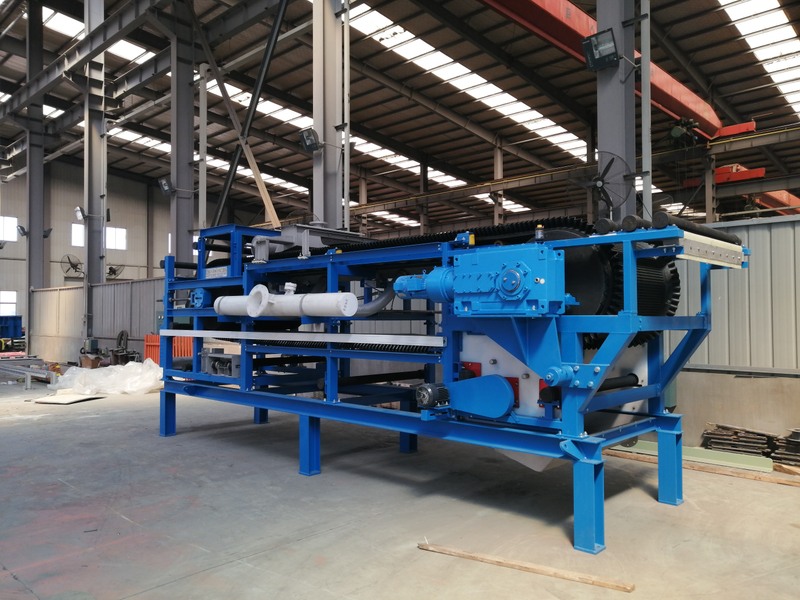

The DU rubber belt vacuum filter is equipment that realizes solid-liquid separation with vacuum negative pressure as driving force. In the structure, its filtration section is arranged along the horizontal length and it can continuously perform filtrating, washing, blotting, and filter cloth regeneration etc. The equipment has the advantages of high filtration efficiency, large production capacity, good washing effect, low water content of the filter cake, flexible operation and low maintenance cost etc. It can be widely used for solid-liquid separation in the fields of metallurgy, mining, chemical, papermaking, food, pharmacy and environmental protection etc. and it particularly has a good application in the flue gas desulfurization gypsum dehydration (FGD).
Product Specification:
Filtration Area (m2) | Filtration width(mm) | Filtration Length (m ) | Weight (T) | Outline Size L×W×H (m) | Filtration Area (m2) | Filtration width(mm) | Filtration Length(m ) | Weight (T) | Outline Size L×W×H (m) |
DU-2 | 500 | 4 | 3.0 | 7.82×2×2 | DU-25 | 2500 | 10 | 22 | 14.5×4.8×2.2 |
DU-2.5 | 5 | 3.2 | 8.82×2×2 | DU-30 | 12 | 25.3 | 16.5×4.8×2.2 | ||
DU-3 | 6 | 3.4 | 9.9×2×2 | DU-35 | 14 | 27.4 | 18.5×4.8×2.2 | ||
DU-5 | 10 | 3.8 | 14.0×2.2×2 | DU-40 | 16 | 29.5 | 21.5×4.8×2.4 | ||
DU-4.8 | 800 | 6 | 5.0 | 10.05×2.5×2 | DU-45 | 18 | 31.6 | 23.5×4.8×2.4 | |
DU-6.4 | 8 | 5.5 | 12.05×2.5×2 | DU-50 | 20 | 38.6 | 25.6×4.8×2.4 | ||
DU-8 | 10 | 6.0 | 14.10×2.6×2 | DU-33.6 | 2800 | 12 | 20.5 | 17.6×5.0×2.5 | |
DU-9.6 | 12 | 7.0 | 16.25×2.6×2 | DU-39.2 | 14 | 24.1 | 19.6×5.0×2.5 | ||
DU-5 | 1000 | 5 | 5.3 | 8.87×2.6×20 | DU-36 | 3000 | 12 | 22 | 17.6×5.5×2.8 |
DU-6 | 6 | 5.8 | 10.5×2.6×2 | DU-42 | 14 | 24 | 19.6×5.5×2.8 | ||
DU-8 | 8 | 6.3 | 12.5×2.8×2 | DU-48 | 16 | 28 | 21.6×5.5×2.8 | ||
DU-10 | 10 | 6.8 | 14.5×2.8×2 | DU-54 | 18 | 30.6 | 23.6×5.5×2.8 | ||
DU-12 | 12 | 7.3 | 16.5×2.8×2 | DU-60 | 20 | 35.2 | 25.6×5.5×2.8 | ||
DU-14 | 14 | 7.8 | 18.5×2.8×2 | DU-44.8 | 3200 | 14 | 35.3 | 19.5×5.7×3.1 | |
DU-7.8 | 1300 | 6 | 7.2 | 10.4×3.15×2 | DU-48 | 15 | 36.2 | 20.5×5.7×3.1 | |
DU-10.4 | 8 | 8.3 | 12.4×3.15×2 | DU-51.2 | 16 | 37.7 | 21.5×5.7×3.1 | ||
DU-13 | 10 | 9 | 14.4×3.15×2 | DU-57.6 | 18 | 40.1 | 23.5×5.7×3.1 | ||
DU-15.6 | 12 | 10.5 | 16.4×3.15×2 | DU-64 | 20 | 42.5 | 25.5×5.7×3.1 | ||
DU-18.2 | 14 | 11.5 | 18.4×3.15×2 | DU-72 | 22.5 | 52.4 | 28.5×5.7×3.1 | ||
DU-20.8 | 16 | 12.5 | 20.4×3.15×2 | DU-72 | 4000 | 18 | 56.2 | 24.0×7.1×3.3 | |
DU-14.4 | 1800 | 8 | 12.7 | 12.6×4×2.2 | DU-80 | 20 | 58.8 | 26.0×7.1×3.3 | |
DU-18 | 10 | 13.7 | 14.6×4×2.2 | DU-88 | 22 | 66.6 | 28.0×7.1×3.3 | ||
DU-21.6 | 12 | 15.3 | 16.6×4×2.2 | DU-96 | 24 | 69.4 | 30.0×7.1×3.3 | ||
DU-25.2 | 14 | 16.6 | 18.6×4×2.2 | DU-104 | 26 | 72.2 | 32.0×7.1×3.3 | ||
DU-28.8 | 16 | 17.9 | 20.6×4×2.2 | DU-90 | 4500 | 20 | 72 | 26.5×7.5×3.6 | |
DU-16 | 2000 | 8 | 14.2 | 12.7×4.2×2.2 | DU-99 | 22 | 75.2 | 28.5×7.5×3.6 | |
DU-20 | 10 | 15.4 | 14.7×4.2×2.2 | DU-108 | 24 | 78.4 | 30.5×7.5×3.6 | ||
DU-24 | 12 | 17.2 | 16.7×4.2×2.2 | DU-117 | 26 | 81.6 | 32.5×7.5×3.6 | ||
DU-28 | 14 | 18.7 | 18.7×4.2×2.2 | DU-126 | 28 | 84.8 | 34.5×7.5×3.6 | ||
DU-32 | 16 | 20.2 | 20.7×4.2×2.2 | DU-135 | 30 | 88 | 36.5×7.5×3.6 | ||
DU-36 | 18 | 21.7 | 22.7×4.2×2.2 | DU-144 | 32 | 93 | 38.5×7.5×3.6 |
Product Advantages:
To continuously complete feed filtration, filter cake washing, blotting, unloading, filter cloth regeneration and other process operations
The filtrated stock and filter cake washing solution in different sections can be collected in stages and the advection washing and countercurrent washing can be realized.
The modular design of overall structure is flexible for assembly and convenient for transport and installation.
The control system with DCS technology can realize onsite and remote automation.
Service Support
Whole Technological Design
Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction
Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.
Response Time and After-sales Services
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
